JK MINI CRANE 500

(JKM 500)

All Products

JK MINI CRANE 500

(JKM 500)

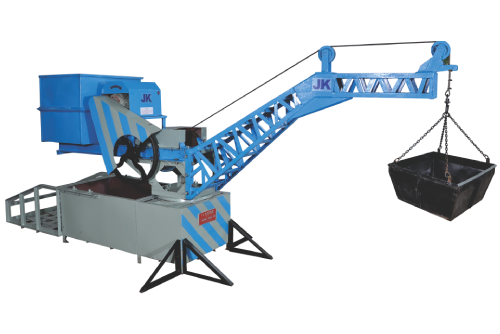

JK MINI CRANE 500 is a high‑capacity mini crane engineered for lifting heavy construction materials on mid‑ to high‑rise projects. With a 500 kg load capacity and 120 m height reach, it reliably hoists cement, bricks, steel, concrete buckets, and other bulky loads on demanding job sites. A powerful 5 HP Crompton motor drives its customizable, 360° rotating boom for wide coverage, smooth operation, and quick setup.

Its generous bucket volume streamlines bulk material handling, boosting workflow efficiency and reducing manual labor on both commercial and residential sites. Built for rugged daily use, the JK MINI 500 delivers the strength, durability, and speed contractors need for vertical lifting operations.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 500
Capacity 500 Kg
Height 30 – 120 Meters
Boom Length 6.5 Ft
Rotation 360°
Prime Mover 5 HP Crompton Motor
Wire Rope 10 mm, 6x36 Usha Martin
Bucket Size L920 x W920 x H423 mm
Bucket Volume 0.225 Cu.M
Overall Dimensions L4673 x W762 x H1980 mm
Weight 700 Kg

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
