JK MINI CRANE 500 WR

(JKM 500 WR)

All Products

JK MINI CRANE 500 WR

(JKM 500 WR)

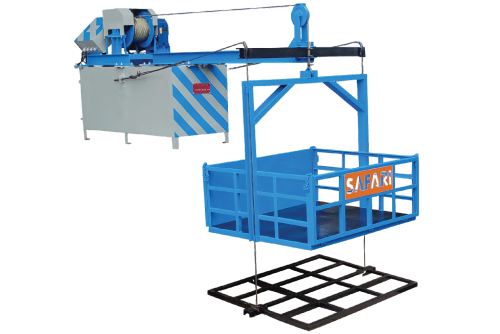

The JK MINI CRANE 500 WR is a premium wire rope-guided mini crane engineered for lifting heavy construction materials up to 500 kg to heights of 120 meter. Equipped with a high-quality gearbox and motor, this mini crane ensures smooth, reliable lifting for high-rise construction sites. Its guided wire rope system offers enhanced stability during hoisting, reducing swing and improving control — especially vital when lifting materials like cement bags, steel, and bricks to upper floors.

Compact in design and easy to mount on building structures, the JK MINI 500 WR operates via a user-friendly panel board with wired remote control for safe, ground-level operation.

Its large customizable bucket (Standard size: 1200 x 1070 x 520 mm) allows for high-volume lifting with each cycle, making it ideal for fast-paced site work. Built for urban construction zones and tall buildings with space constraints, this wall-mounted mini crane is a trusted choice for contractors demanding precision, strength, and durability on vertical jobs.

SAFETY FEATURES

  • No Foundation Required
  • Self Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly
  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 500 WR
Capacity 500 Kg
Height Upto 120 Meters
Prime Mover Imported Gearbox with Motor
Operation Panel Board with Wired Remote Control
Wire Rope 8/10 mm, 6x36 Usha Martin

OPTIONS

PrimeMover: Three Phase Motor
Customizable Wire Rope Length
Limit Switch with Starter
Data, features and illustrations are not binding and may be altered without any notice.
