JK MINI CRANE 150 R

(JKM 150 R)

All Products

JK MINI CRANE 150 R

(JKM 150 R)

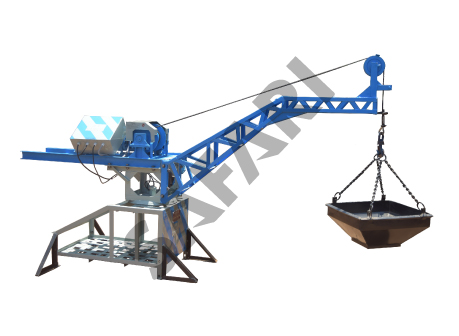

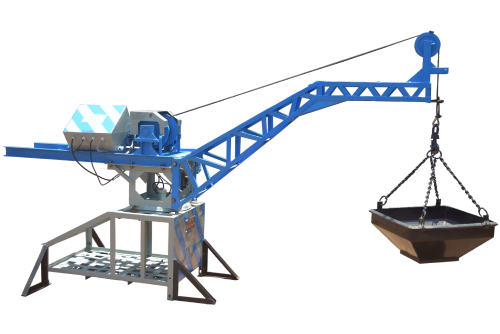

The JK Mini Crane (JK MINI 150 R) is a compact and efficient lifting solution designed for hoisting construction materials up to 150 kg to heights of 120 meters. Built for high-rise building sites and residential projects, this 360° rotating mini crane features a 6.5 ft boom and is powered by an imported gearbox with motor for smooth and reliable lifting. Operated via a panel board with a wired remote control, it allows precise control and easy handling even in tight urban spaces.

Equipped with high-quality 8/10 mm, 6x36 wire rope, the JK MINI 150 R ensures safety and performance during continuous operations.

Its compact design and easy installation make it ideal for construction contractors seeking a dependable building material hoist for lifting cement, bricks, sand, tiles, steel rods, and more—quickly and safely on-site.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 150 R
Capacity 150 Kg
Height Upto 120 Meters
Boom Length 6.5 Ft
Boom Rotation 360°
Prime Mover Imported Gearbox with Motor
Operation Panel Board with Wired Remote Control
Wire Rope 8/10 mm, 6x36 Usha Martin

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
