SAFARI FOUR POLES TOWER HOIST

(Safari TH 4P)

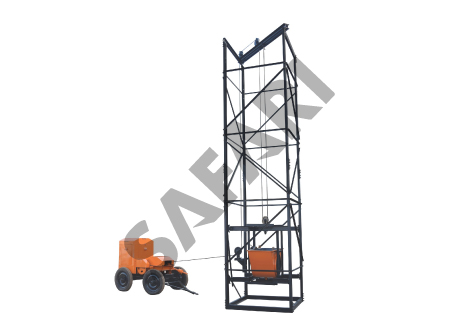

The SAFARI FOUR POLES TOWER HOIST is a high-capacity four poles tower hoist designed for lifting concrete and construction materials to heights up to 350 feet. With a load capacity of 1000 kg, it is the ideal solution for high-rise slab work, structural RCC construction, and bulk material lifting on large-scale sites.

Built on a robust 4-pole tower system with heavy-duty channels and a 5' x 5' box frame, this hoist delivers exceptional stability and load handling. Powered by an air-cooled diesel engine or (Electric Motor) (depending on site requirements), it operates on a friction roller drive system and uses Usha Martin wire rope for smooth and secure lifting.

The reinforced skip unit with safety lock and 0.25 cu.m bucket ensures safe, continuous performance, making the SAFARI TH 4P a trusted choice for demanding vertical transport applications in multi-storey construction.

Product Details

Model No. SAFARI TH 4P
Name Four Poles Tower Hois
Capacity 1000 kg
Height Upto 350 Ft
Prime Movers Air Cooled Diesel Engine / Electric Motor (suitable to required height)
Wire Rope 12 mm, 6 x 36
Drive Friction Roller Type
Skip Unit Heavy Duty with Safety Lock
Bucket Capacity 0.25 Cubic Meters
Channel Type 4 Pole
Channel Size 100 x 50 mm
Box Size 5’ x 5’
Wheels 600 x 16 Pneumatic Tyres with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos

OPTIONS

Gearbox System with Wired Remote Operation
Fall Arrest on Power Failure
Material Bucket
Data, features and illustrations are not binding and may be altered without any notice.
