SUSPENDED ROPE PLATFORM

(SSP 800A)

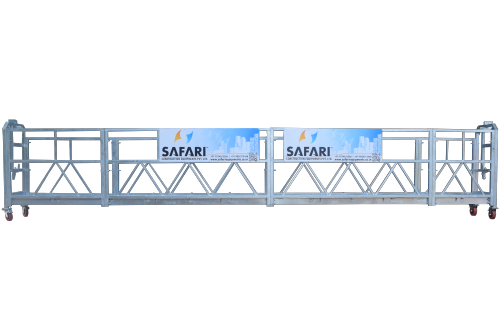

The SSP 800A Suspended Rope Platform is a reliable and efficient solution for vertical access during high-rise construction and maintenance. Commonly used for façade work, plastering, painting, glass installation, and external finishing, it provides a safe and stable working platform at significant heights. Its modular design allows quick assembly and flexibility on site, making it ideal for both new construction and renovation projects.

Favored by contractors and façade specialists, the SSP 800A ensures smooth vertical movement and maximum worker safety.

Built with a corrosion-resistant structure and equipped for demanding site conditions, it’s the go-to choice for professionals seeking a durable and easy-to-operate ZLP-type suspended platform for high-rise buildings.

SAFETY FEATURES

  • Locking Arrangement for Upper Counterweights
  • Anti-Sway and Anti-Tilting Cut-Off
  • Movement Restrictions
  • Centrifugal Speed Limiter
  • Top Limit Switch
  • Overcurrent Protection
  • Electromagnetic Brake with Manual Release

Product Details

Model No. SSP 800A
Platform Size 7.5 Mtr. (2.5Mtr x 2, 1.5Mtr x 1, 1Mtr x 1)
Wire Rope 9.1 mm
Wire Rope Height 100 Mtr. / 150 Mtr.
Material MS Steel with Hot Dip Galvanised
Lifting Speed 9 – 11 Mtr./Min
Rated Load 800 Kgs
Counter Weight 1000 Kgs – Cement Block
Structure Weight 900 – 950 Kgs
Data, features and illustrations are not binding and may be altered without any notice.
