SAFARI TOWER HOIST

(SAFARI TH)

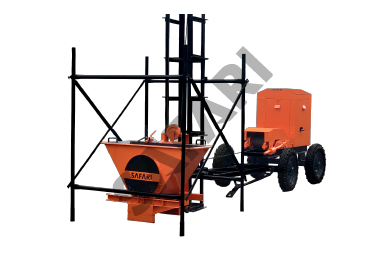

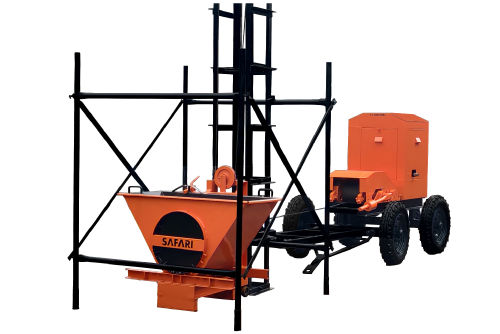

The SAFARI TOWER HOIST is a robust tower hoist designed for lifting concrete and construction materials to heights up to 200 feet. Engineered for strength and stability, this heavy-duty hoist handles loads of up to 1000 kg, making it ideal for high-rise slab casting, structural RCC work, and material transfer in tall buildings.

Driven by either an air-cooled diesel engine or (Electric Motor) (depending on height and site needs), the SAFARI TH operates using a friction roller drive system and high-tensile Usha Martin wire rope. Its stable H-frame scaffolding and scissors mechanism provide a secure and balanced tower structure.

Equipped with a reinforced skip unit, safety lock, and heavy-duty bucket, this hoist delivers reliable performance in demanding job site conditions. Built with mobility and durability in mind, it’s a trusted lifting solution for serious construction professionals.

SPECIAL FEATURES

  • Easy to Install
  • Scaffolding 'H-frame' of B-Class, ISI Marked Pipe
  • No Foundation Required
  • 12 mm, 6x36, Usha Martin Wire Rope
  • Heavy Duty Tower

Product Details

Model No. SAFARI TH
Capacity Upto 1000 kg Gross Load
Height Upto 200 Ft
Prime Movers Air Cooled Diesel Engine / Electric Motor (as per height requirement)
Column / Tower 50 x 50 x 6 mm Angle
Wire Rope 12 mm, 6x36
Drive Friction Roller Type
Scaffolding H Frame - B class @ 31.75 mm pipe (ISI mark) & Scissors - 30 x 30 x 3 mm
Skip Unit Heavy Duty with Safety Lock
Bucket Capacity 0.25 Cubic Meters
Wheels 600 x 16 Pneumatic Tyres with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos
Data, features and illustrations are not binding and may be altered without any notice.
