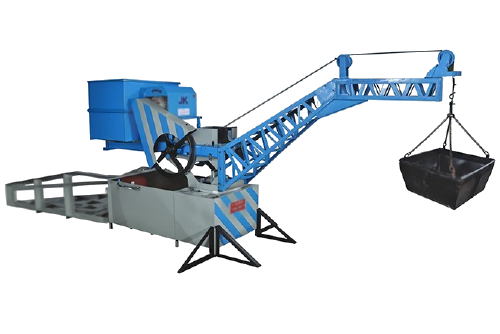

JK MINI CRANE 1000

(JKM 1 TON)

All Products

JK MINI CRANE 1000

(JKM 1 TON)


The JK MINI CRANE 1 TON is a powerful, heavy-duty mini crane engineered for lifting large volumes of construction materials on high-rise building sites. With a robust 1-ton capacity and a lifting range of up to 150 meters, it is ideal for vertical hoisting of cement, steel, blocks, concrete pans, and other bulky construction materials. The 7 ft boom with 360° rotation and customizable length provides excellent reach and maneuverability, even on tight or congested job sites.

Equipped with a 7.5 HP Crompton motor and durable wire rope, the JK MINI 1 TON delivers consistent lifting performance in the toughest site conditions. Its high-volume bucket minimizes lifting cycles, improving on-site productivity and reducing labor requirements. Widely used in commercial towers, infrastructure development, and large-scale residential projects, this mini crane is trusted for its strength, safety, and reliability in demanding vertical lifting applications.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 1TON
Capacity 1 TON
Height 30-150 Meters
Boom Length 7 Ft
Boom Rotation 360°
Prime Mover 7.5 HP Crompton Motor
Wire Rope 12 mm, 6x36 Usha Martin
Bucket Size L1035 x W1035 x H560 mm
Bucket Volume 0.415 Cu.M
Overall Dimensions L5614 x W813 x H1980 mm
Weight 1200 Kg

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
