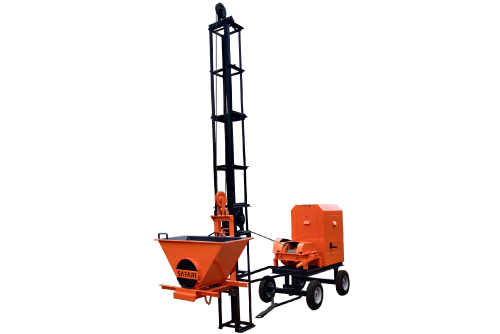

SAFARI MINI TOWER HOIST

(Safari Mini-TH)


The SAFARI MINI TOWER HOIST is a compact tower hoist designed for material lifting on low-rise construction sites. With a load capacity of up to 500 kg and a lifting height of 40 feet, it is ideal for small building projects, slab casting, and material transport in confined areas where larger hoists are not feasible.

Powered by an 8 HP diesel engine or a 5 HP (Electric Motor), this mini tower hoist features a friction roller drive system and high-quality wire rope for safe and reliable lifting. Its angle-frame tower design ensures structural integrity, while the heavy-duty skip unit with safety lock offers secure bucket handling.

The SAFARI-TH MINI is mounted on pneumatic wheels for easy mobility and is the perfect lifting solution for contractors working on smaller RCC jobs or residential buildings.

Product Details

Model No. SAFARI TH MINI
Capacity Upto 500 kg Gross Load
Height Upto 40 Ft
Prime Movers 8 HP Air Cooled Diesel Engine / 5 HP Electric Motor
Column / Tower Front: 50 x 50 x 6 mm Angle, Rear: 35 x 35 x 5 mm Angle
Wire Rope 10 mm, 6x36
Drive Friction Roller Type
Skip Unit Heavy Duty with Safety Lock
Bucket Capacity 0.17 Cubic Meters
Wheels 400 x 8 Pneumatic Tyres with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos
Data, features and illustrations are not binding and may be altered without any notice.
