JK MINI CRANE 150 COMPACT

(JKM 150 COMPACT)

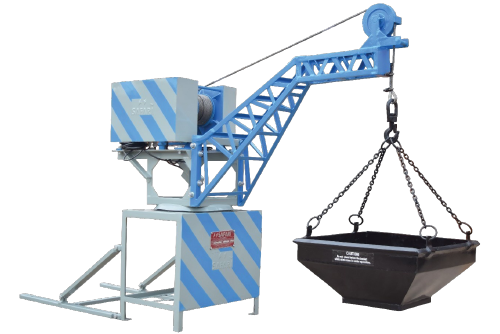

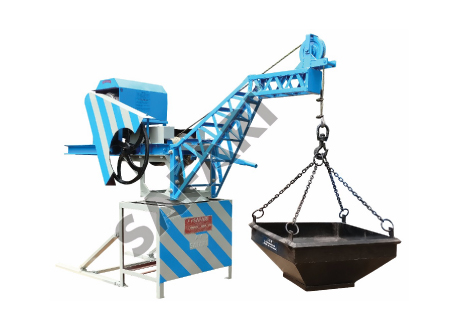

JK MINI CRANE 150 COMPACT is a lightweight, space‑saving mini crane for vertical lifting on construction sites. With a 150 kg capacity and reach up to 60 m, it hoists cement, sand, bricks, tiles, steel rods, and other materials—making it perfect for high‑rise buildings, waterproofing jobs, foundations, chemical plants, quarries, dams, bridges, and well work. A customizable boom (6.5 ft standard) with full 360° rotation lets crews position loads precisely without relocating the base. Powered by an imported gearbox‑motor set and fitted with high‑strength wire rope, this compact crane installs easily on rooftops or tight floors, delivering safe, reliable, low‑maintenance lifting that speeds work and cuts labor.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 150 COMPACT
Capacity 150 Kg
Height Upto 60 Meters
Boom Length 6.5 Ft
Boom Rotation 360°
Prime Mover Imported Gearbox with Motor
Operation Panel Board with Wired Remote Control
Wire Rope 8/10 mm, 6x36 Usha Martin

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
