JK MINI CRANE 150 TRIPOD

(JKM 150 TRIPOD)

All Products

JK MINI CRANE 150 TRIPOD

(JKM 150 TRIPOD)

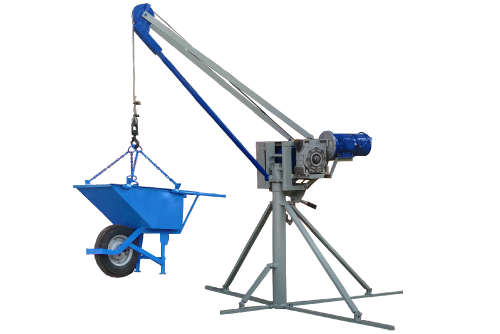

The JK MINI CRANE 150 Tripod is a portable and highly versatile mini crane designed for lifting construction materials up to 150 kg to heights of 120 meters. Its three-legged tripod base offers a stable yet compact setup, making it ideal for confined or uneven surfaces where traditional mounting isn’t possible. This model is especially suited for interior works, slab casting, renovation jobs, and temporary high-rise lifting requirements.

Equipped with a 6.5 ft boom and 360° rotation, it offers excellent material reach and flexibility.

Powered by an imported gearbox with motor and operated via a wired remote control panel, the JK MINI 150 Tripod delivers safe, controlled, and consistent lifting performance. With its easy assembly, disassembly, and transportability, this mini crane is a go-to solution for contractors looking for a lightweight, reliable, and quick-to-deploy hoisting system on construction sites.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 150 TRIPOD
Capacity 150 Kg
Height Upto 120 Meters
Boom Length 6.5 Ft
Boom Rotation 360°
Prime Mover Imported Gearbox with Motor
Operation Panel Board with Wired Remote Control
Wire Rope 8/10 mm, 6x36 Usha Martin

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
