JK MINI CRANE 150

(JKM 150)

All Products

JK MINI CRANE 150

(JKM 150)

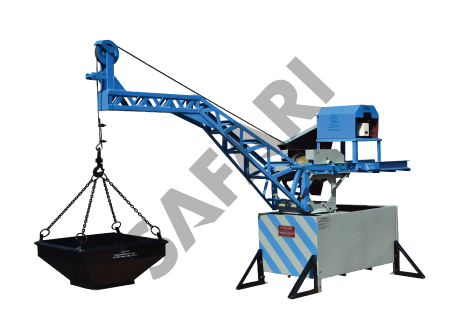

JK MINI 150 CRANE is a compact, space‑saving mini crane engineered for vertical lifting on low‑ to mid‑rise construction sites. Featuring a 150 kg capacity, customizable boom length with 360° rotation, and reach up to 60 m, it reliably hoists cement, sand, bricks, tiles, steel rods, and other building materials where tower cranes cannot fit. Powered by a 2 HP Crompton motor and fitted with high‑strength wire rope, the crane delivers safe, smooth, low‑maintenance lifting for tasks such as waterproofing, foundation work, façade repair, chemical‑plant maintenance, quarries, dams, bridges, and well construction. Its quick setup and operator‑friendly design help contractors save time and labor, making it the ideal portable crane for daily material handling when reliability, durability, and efficiency are essential.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 150
Capacity 150 Kg
Height 30 – 60 Meters
Boom Length 6.5 Ft
Prime Mover 2 HP Crompton Motor
Rotation 360°
Wire Rope 8 mm, 6x36 Usha Martin
Bucket Size L645 x W645 x H272 mm
Bucket Volume 0.06 Cu.M
Weight 350 Kg
Overall Dimensions L3450 x W685 x H1828 mm

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
