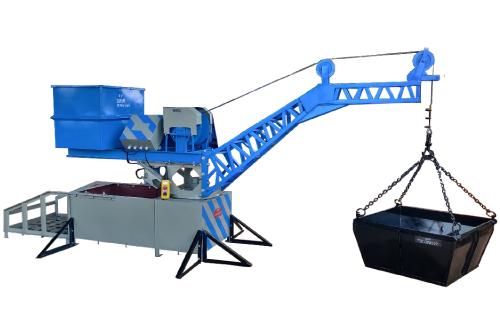

JK MINI CRANE 500 R

(JKM 500 R)

All Products

JK MINI CRANE 500 R

(JKM 500 R)


The JK MINI CRANE 500 R is a high-performance mini crane specially designed for lifting heavier loads up to 500 kg on high-rise construction projects. Engineered for durability and smooth operation, it is the ideal lifting solution for cement bags, steel bars, concrete blocks, and other construction materials to upper floors with precision and safety. With its 360° boom rotation and customizable boom length, it allows flexible coverage without needing to reposition the machine—perfect for tight and busy job sites.

Built to withstand the rigors of daily site operations, the JK MINI 500 R features a compact footprint and quick setup, making it suitable for both residential towers and commercial buildings.

The wired remote-controlled operation ensures safe lifting from a distance, reducing manpower and increasing efficiency. Its robust design and reliable lifting mechanism offer long-term performance with minimal maintenance. Whether you're a contractor working on multi-storey housing, infrastructure, or commercial projects, the JK MINI 500 R delivers the strength, stability, and productivity needed for fast and safe material hoisting on vertical job sites.

SPECIAL FEATURES

  • No Foundation Required
  • Self-Balanced with Smart Counter Weight System
  • Simple Operation
  • Detachable Parts for Portability
  • Installed Quickly

MINI CRANE SAFETY FEATURES

  • Certified Wire Rope
  • Boom Rotation Locking System
  • Tested Bucket Chain
  • Tested with Full Load

Product Details

Model No. JK MINI CRANE 500 R
Capacity 500 Kg
Height Upto 120 Meters
Boom Length 6.5 Ft
Boom Rotation 360°
Prime Mover Imported Gearbox with Motor
Operation Panel Board with Wired Remote Control
Wire Rope 8/10 mm, 6x36 Usha Martin

OPTIONS

Boom: 3.5 / 8 / 10 / 12 Ft Length – Z Type
Bucket: Sturdy / Bottom Discharge / Tilting / Square / Wheeled
PrimeMover: Single / Three Phase Motor / Diesel Engine
Auto Rewinding System
Auto Mechanical Brakes on Power Failure
Customizable Wire Rope Length
Limit Switch with Starter
Mobile Mini Crane with Pin Type Jack System
Data, features and illustrations are not binding and may be altered without any notice.
