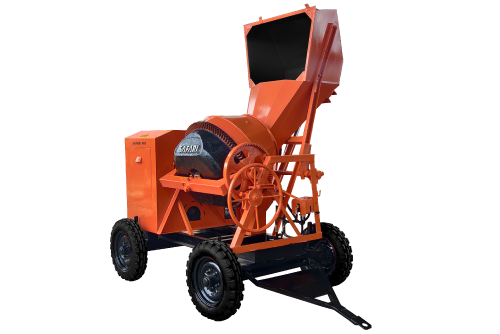

SAFARI 1000 H

(Hydraulic Mixer)


The SAFARI 1000 H is a rugged hydraulic concrete mixer designed for efficient mixing operations on demanding construction sites. Built with a heavy-duty chassis and hydraulic power system, it is ideal for RCC work in residential, commercial, and site-cast structures. Its drum capacity supports 10/7 CFT mixing with smooth tilting operation, delivering a uniform concrete mix with minimal manual effort.

Powered by a diesel engine or (Electric Motor), this mixer is equipped with a robust hydraulic jack system for hopper control and a reliable drive chain for consistent rotation.

With reinforced drums and blades, pneumatic wheels, and easy mobility, the SAFARI 1000 H offers dependable performance in daily concrete production under tough site conditions.

Product Details

Model No. SAFARI 1000 H
Capacity 10/7 CFT
Prime Mover 7.5 HP Air Cooled HSD Diesel Engine / 5 HP Electric Motor
Hopper 3.15 mm thick M.S. Hopper, Hydraulically Operated with Heavy Duty Power Pack
Wire Rope / Hydraulic System Single Action Hydraulic Jack with Manually Operated Control Valve, ISI Mark High Pressure Hoses
Wheels 600 x 16 Pneumatic Type with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos
Chassis Heavy Duty M.S. 125 x 65 mm Channel with Jacks on All Four Sides
Handi Yoke 100 x 100 x 5 mm Seamless M.S. Pipe, Bearing System
Drive Chain Rolon Brand
Mixing Drum and Blades Heavy Duty CI Lower Drum, 3.15 mm M.S. Upper Drum, Heavy Duty M.S. Blades
Drum Type Tilting
Dimensions (L x W x H) 2640 x 2060 x 2960 mm
Weight 1360 Kg

OPTIONS

Combo Model: Diesel Engine & Motor
Easy chain exchange between motor and diesel
Single / Double Bin with Load Cell
Digital Panel & 0.5 HP Crompton Water Pump
Heavy Duty 40" CI Drum
Data, features and illustrations are not binding and may be altered without any notice.
