SAFARI 1000 MCL WITH HOPPER

(Safari 1000 MCL)

All Products

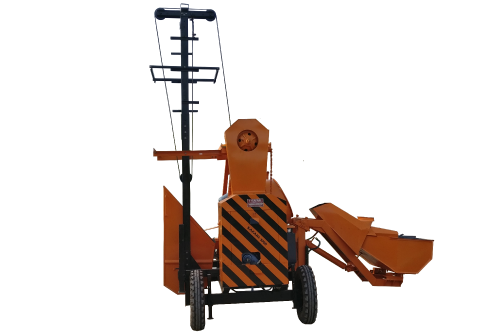

SAFARI 1000 MCL WITH HOPPER

(Safari 1000 MCL)


The SAFARI 1000 MCL with Hopper is a high-performance concrete mixer cum material lift system, ideal for slab casting and multi-storey concreting in residential and commercial projects. Designed to streamline both mixing and vertical transport of concrete, this machine combines a heavy-duty tilting drum mixer with a powerful lifting mechanism for heights up to 55 feet.

Powered by a 10 HP air-cooled diesel engine, it delivers consistent mixing with a 500-litre drum capacity and 250-litre hoist bucket. The integrated hopper allows quick and easy loading of materials, reducing manual effort and boosting site productivity.

The system operates on a clutch-type drive and features a strong channel tower, Usha Martin 12 mm wire rope, and Rolon-brand drive chain for dependable vertical lifting. Built on a rugged chassis with pneumatic wheels, the SAFARI 1000 MCL with Hopper is a reliable, all-in-one solution for fast and efficient concrete operations.

MCL WITH WEIGH BATCHER
Two/Three Bin Hopper, Hydraulic Operated with Heavy Duty Power Pack
MCL WITHOUT WEIGH BATCHER
3.15 mm thick M.S. Hopper, Hydraulically Operated with Heavy Duty Power Pack

Product Details

Model No. SAFARI 1000 MCL WITH HOPPER
Prime Mover 10 HP Air Cooled HSD Diesel Engine
Mixing Drum Volume 500 Litres
Height 55 Ft
Hoist Bucket Capacity 250 Litres
Drum Speed 18 RPM
Yoke 100 x 100 x 5 mm Seamless M.S. Pipe with Bearing System
Chassis 10/7 CFT
Drive Chain Rolon Brand
Handi / Drum Heavy Duty CI Drum
Column / Tower 100 x 50 C Channel Tower
Wire Rope 12 mm, Usha Martin
Drive Clutch Type
Wheels 600 x 16 Pneumatic Tyres with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos
Dimensions (L x W x H) L 2909 x W 2134 x H 2744 mm
Weight 2380 Kg
Data, features and illustrations are not binding and may be altered without any notice.
