SAFARI 1000 C

(Hydraulic Mixer)

All Products

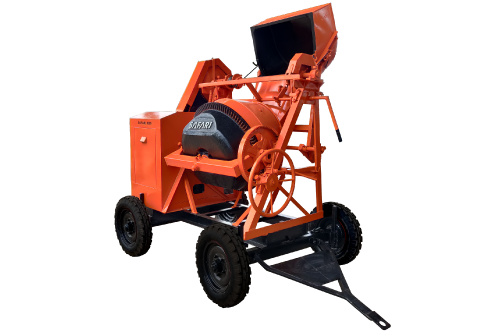

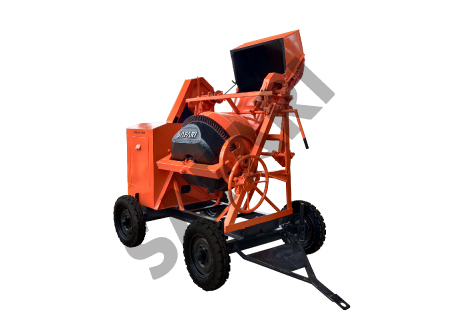

SAFARI 1000 C

(Hydraulic Mixer)


The SAFARI 1000C is a mechanical clutch operated mixer built for consistent and efficient mixing on construction sites. Designed for 10/7 CFT output, this mixer is ideal for slab casting, beam work, and general RCC applications in residential and small commercial projects.

Equipped with a strong mechanical hopper and driven by a diesel engine or (Electric Motor), it offers easy loading and smooth tilting discharge. The SAFARI 1000C uses Usha Martin wire rope for reliable lifting and is supported by a heavy-duty chassis and pneumatic wheels for site mobility.

Its reinforced drum, durable mixing blades, and rugged construction make it a reliable choice for concrete production in tough working conditions.

Product Details

Model No. SAFARI 1000 C
Capacity 10/7 CFT
Prime Mover 6.5 HP Air Cooled HSD Diesel Engine / 5 HP Electric Motor
Hopper 3.15 mm thick M.S. Hopper, Mechanical clutch operated with Heavy Duty Power Pack
Wire Rope Usha Martin 10 mm – 6x36 FMC
Wheels 600 x 16 Pneumatic Type with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos
Chassis Heavy Duty M.S. 125 x 65 mm Channel with Jacks on All Four Sides
Handi Yoke 100 x 100 x 5 mm Seamless M.S. Pipe, Bearing System
Drive Chain Rolon Brand
Mixing Drum and Blades Heavy Duty CI Lower Drum, 3.15 mm M.S. Upper Drum, Heavy Duty M.S. Blades
Drum Type Tilting
Dimensions (L x W x H) 2620 x 2180 x 2825 mm
Weight 1450 Kg

OPTIONS

Combo Model: Diesel Engine & Motor
Easy chain exchange between motor and diesel
Single / Double Bin with Load Cell
Digital Panel & 0.5 HP Crompton Water Pump
Heavy Duty 40" CI Drum
Data, features and illustrations are not binding and may be altered without any notice.
