SAFARI 1000 MCL WITHOUT HOPPER

(Safari 1000 MCL)

All Products

SAFARI 1000 MCL WITHOUT HOPPER

(Safari 1000 MCL)

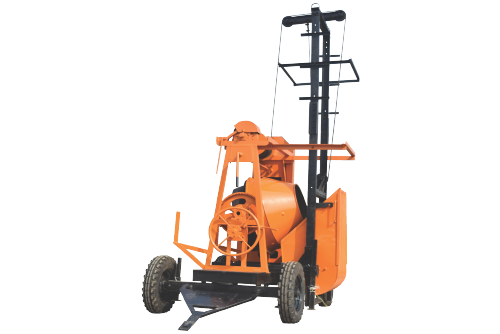

The SAFARI 1000 MCL without Hopper is a reliable and efficient concrete mixer cum lift machine designed for floor-wise concreting in multi-storey building construction. Built for mixing and vertical material lifting up to 55 feet, it’s ideal for contractors who prefer manual loading but need mechanical lifting and mixing efficiency on-site.

Powered by a 10 HP air-cooled diesel engine, this machine features a 500-litre heavy-duty cast iron drum for consistent concrete mixing and a 250-litre hoist bucket for smooth vertical transport. It operates on a clutch-driven system with a Rolon brand drive chain and durable 12 mm Usha Martin wire rope.

The mixer is supported by a robust channel tower structure and a balanced chassis mounted on pneumatic tyres, making it suitable for rugged site conditions where manual feeding is managed separately.

Product Details

Model No. SAFARI 1000 MCL WITHOUT HOPPER
Prime Mover 10 HP Air Cooled HSD Diesel Engine
Mixing Drum Volume 500 Litres
Height 55 Ft
Hoist Bucket Capacity 250 Litres
Drum Speed 18 RPM
Yoke 100 x 100 x 5 mm Seamless M.S. Pipe with Bearing System
Chassis 10/7 CFT
Drive Chain Rolon Brand
Handi / Drum Heavy Duty CI Drum
Column / Tower 100 x 50 C Channel Tower
Wire Rope 12 mm, Usha Martin
Drive Clutch Type
Wheels 600 x 16 Pneumatic Tyres with Hub & Bearing System, Pressed Steel Plate Rims – 4 Nos
Dimensions (L x W x H) L 2909 x W 2134 x H 2744 mm
Weight 2200 Kg
Data, features and illustrations are not binding and may be altered without any notice.
