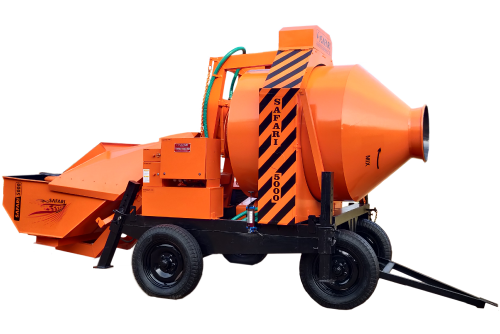

SAFARI 5000

(Reversible Drum Mixer)


The SAFARI 5000 (Electric Motor) is a heavy-duty reversible drum mixer built to deliver high-volume concrete output for large-scale construction and infrastructure projects. Designed for performance and productivity, it supports fast mixing cycles, accurate batching, and consistent concrete quality—making it ideal for commercial buildings, industrial foundations, and precast works.

Its reversible drum ensures thorough mixing and smooth discharge, while the dual hydraulic jack-operated loading hopper speeds up batching. The integrated load cell-based weighing system with digital display enables precise control over mix proportions, reducing material waste and improving efficiency on-site.

Driven by a powerful 15 HP (Electric Motor), along with dedicated motors for water pumping and vibration, the SAFARI 5000 offers unmatched performance on demanding sites. Its robust build, twin rollers, centralized lubrication, and high-capacity output make it a preferred choice for contractors who require maximum productivity with minimum downtime.

SAFETY FEATURES

  • Heavy Duty Twin Rollers
  • Centralized Grease Lubricating System
  • Wider Wheel Track
  • Drum & Mechanical Jack in 5 mm M.S.
  • Automatic Water Control via water meter
  • Smart Hopper Design to reduce spillage
  • Extra Chassis Support

Product Details

Model No. SAFARI 5000
Drum Capacity 1.05 Cu.M
Batch Capacity 0.75 Cu.M
Output 15 Cu.M/Hr
Prime Mover 15 HP Motor, 1 HP Water Pump , 0.5 HP Vibrating Motor
Gear Box Type Planetary Gear Box
Chassis Heavy Duty Balanced Chassis
Wheels 700 x 19 Pneumatic Tyre – 4 Nos
Loading Hopper Hydraulic Operated with heavy power pack, single hydraulic jack
Weighing System Load Cell Based with Digital Display
Discharge Height 1570 mm
Drum Dimensions Ø1555 x L2340 mm
Drum Thickness 5 mm
Drum Mouth Diameter 600 mm
Rollers Heavy Duty Twin Rollers – 5 Nos
Lubrication System Centralised, Grease
Dimensions (L x W x H) 5780 x 2240 x 3280 mm
Weight 3320 Kg

OPTIONS

Admixture System
Built-in Printer Port / Printer
Full SCADA System / SCADA Enabled
Single Bin / Four Bin
Data, features and illustrations are not binding and may be altered without any notice.
