SAFARI 2000

(Reversible Drum Mixer)

All Products

SAFARI 2000

(Reversible Drum Mixer)

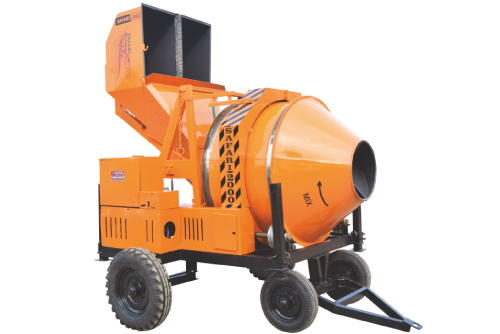

The SAFARI 2000 (Electric Motor) is a robust and highly efficient concrete mixing machine, ideal for medium-scale construction sites requiring consistent concrete output with minimal manual handling. Designed for durability and daily use, this mixer combines advanced mixing technology with ease of operation, making it a reliable solution for residential buildings, small commercial projects, and RCC work.

Its reversible drum mechanism ensures thorough and homogeneous mixing of cement, sand, aggregates, and water. The drum rotates forward for mixing and reverses for discharge, reducing the need for manual intervention and ensuring faster cycle times.

A hydraulic-operated loading hopper with a powerful single-jack system enables quick, safe loading of materials, while the integrated load cell-based weighing system with digital display ensures precise batching. Mounted on a heavy-duty balanced chassis and equipped with pneumatic tyres for mobility, the SAFARI 2000 is engineered for rough site conditions. Its compact footprint and efficient performance make it a preferred choice for contractors seeking a dependable concrete mixer that delivers performance, precision, and productivity on every pour.

SAFETY FEATURES

  • Heavy Duty Twin Rollers
  • Centralized Grease Lubricating System
  • Wider Wheel Track
  • Drum & Mechanical Jack in 5 mm M.S.
  • Automatic Water Control via water meter
  • Smart Hopper Design to reduce spillage
  • Extra Chassis Support

Product Details

Model No. SAFARI 2000
Drum Capacity 0.6 Cu.M
Batch Capacity 0.4 Cu.M
Output 8 Cu.M/Hr
Prime Mover 7.5 HP Motor, 0.5 HP Water Pump
Gear Box Type Planetary Gear Box
Chassis Heavy Duty Balanced Chassis
Wheels 600 x 16 Pneumatic Tyre – 2 Nos450 x 12 Pneumatic Tyre – 2 Nos
Loading Hopper Hydraulic Operated with heavy power pack, single hydraulic jack
Weighing System Load Cell Based with Digital Display
Discharge Height 1160 mm
Drum Dimensions Ø1320 x L1570 mm
Drum Thickness 5 mm
Drum Mouth Diameter 500 mm
Rollers Heavy Duty Rollers – 4 Nos
Lubrication System Provided
Dimensions (L x W x H) 3425 x 2300 x 2260 mm
Weight 1800 Kg

OPTIONS

Admixture System
Built-in Printer Port / Printer
Full SCADA System / SCADA Enabled
Single Bin / Four Bin
Data, features and illustrations are not binding and may be altered without any notice.
