SAFARI 3000E

(Reversible Drum Mixer)

All Products

SAFARI 3000E

(Reversible Drum Mixer)

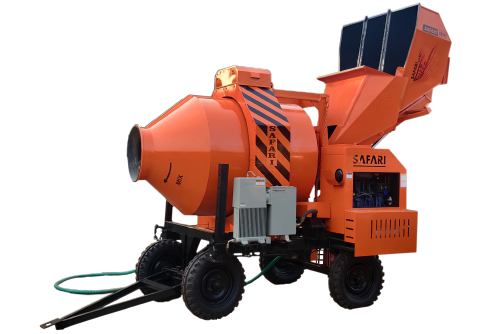

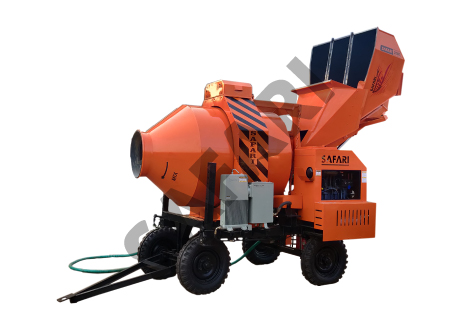

The SAFARI 3000 Diesel Engine is a powerful reversible drum mixer designed for high-volume concrete production on large construction sites. With a batch capacity of 0.6 Cu.M and an output of 12 Cu.M per hour, it is ideal for commercial buildings, industrial foundations, and infrastructure projects requiring consistent concrete supply.

This model is powered by a 16 HP self-start diesel engine and is equipped with a load cell-based digital weighing system for precise batching.

The hydraulic-operated loading hopper, combined with a planetary gearbox and twin rollers, ensures smooth, efficient, and uniform mixing. Built on a heavy-duty chassis with pneumatic tyres for mobility, the SAFARI 3000 Diesel Engine is engineered for tough site conditions where performance, durability, and reliability are essential.

SAFETY FEATURES

  • Heavy Duty Twin Rollers
  • Centralized Grease Lubricating System
  • Wider Wheel Track
  • Drum & Mechanical Jack in 5 mm M.S.
  • Automatic Water Control via water meter
  • Smart Hopper Design to reduce spillage
  • Extra Chassis Support

Product Details

Model No. SAFARI 3000 Diesel Engine
Drum Capacity 0.8 Cu.M
Batch Capacity 0.6 Cu.M
Output 12 Cu.M/Hr
Prime Mover 16 HP Diesel Engine, 1 HP Water Pump, 0.5 HP Vibrating Motor
Gear Box Type Planetary Gear Box
Chassis Heavy Duty Balanced Chassis
Wheels 600 x 16 Pneumatic Tyre – 4 Nos
Loading Hopper Hydraulic Operated with Heavy Power Pack, Single Hydraulic Jack
Weighing System Load Cell Based with Digital Display
Discharge Height 1300 mm
Drum Dimensions Ø1320 x L2070 mm
Drum Thickness 5 mm
Drum Mouth Diameter 550 mm
Rollers Heavy Duty Rollers – 5 Nos
Lubrication System Centralised, Grease
Dimensions (L x W x H) 4550 x 2000 x 2860 mm
Weight 3200 Kg

OPTIONS

Admixture System
Built-in Printer Port / Printer
Full SCADA System / SCADA Enabled
Single Bin / Four Bin
Data, features and illustrations are not binding and may be altered without any notice.
