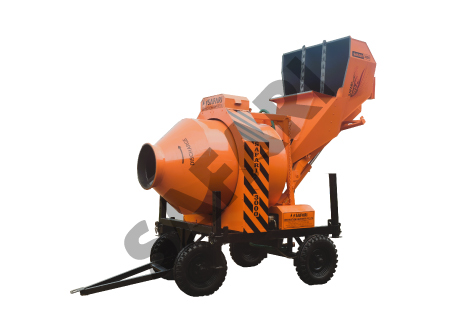

SAFARI 3000M

(Reversible Drum Mixer)


The SAFARI 3000 (Electric Motor) is a high-capacity reversible drum mixer designed for fast, consistent concrete production in large-scale construction projects. Built for performance and durability, this mixer is ideal for commercial buildings, infrastructure work, and high-volume RCC applications where speed and accuracy are critical.

With its reversible mixing technology, the drum rotates forward for thorough blending of materials and reverses for efficient discharge, ensuring uniform concrete quality in every batch. The integrated load cell-based weighing system with digital display provides precise control over material input, while the hydraulic-operated loading hopper speeds up the batching process.

Powered by a 10 HP (Electric Motor) along with a dedicated water pump and vibrating motor, the SAFARI 3000 delivers smooth operation and consistent mix output. Its sturdy chassis, twin rollers, and centralized lubrication system ensure long-term reliability even in demanding site conditions. This mixer is a top choice for contractors who need high output, low maintenance, and precise performance on every pour.

SAFETY FEATURES

  • Heavy Duty Twin Rollers
  • Centralized Grease Lubricating System
  • Wider Wheel Track
  • Drum & Mechanical Jack in 5 mm M.S.
  • Automatic Water Control via water meter
  • Smart Hopper Design to reduce spillage
  • Extra Chassis Support

Product Details

Model No. SAFARI 3000 Electirc Motor
Drum Capacity 0.8 Cu.M
Batch Capacity 0.6 Cu.M
Output 12 Cu.M/Hr
Prime Mover 10 HP Motor, 1 HP Water Pump, 0.5 HP Vibrating Motor
Gear Box Type Planetary Gear Box
Chassis Heavy Duty Balanced Chassis
Wheels 600 x 16 Pneumatic Tyre – 4 Nos
Loading Hopper Hydraulic Operated with Heavy Power Pack, Single Hydraulic Jack
Weighing System Load Cell Based with Digital Display
Discharge Height 1300 mm
Drum Dimensions Ø1320 x L2070 mm
Drum Thickness 5 mm
Drum Mouth Diameter 550 mm
Rollers Heavy Duty Rollers – 5 Nos
Lubrication System Centralised, Grease
Dimensions (L x W x H) 4550 x 2000 x 2860 mm
Weight 2430 Kg

OPTIONS

Admixture System
Built-in Printer Port / Printer
Full SCADA System / SCADA Enabled
Single Bin / Four Bin
Data, features and illustrations are not binding and may be altered without any notice.
