JK TOUGH RIDER

(JKTR)

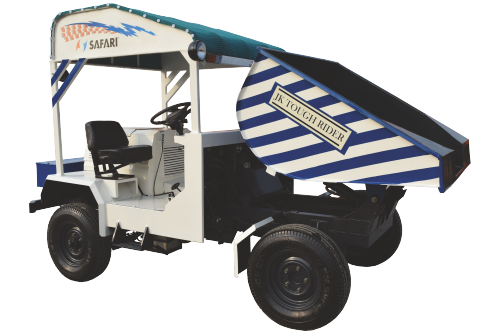

The JK Tough Rider (JKTR) is a robust 2-ton construction dumper designed for transporting sand, aggregates, bricks, and debris across active job sites with ease. Ideal for material handling in construction, this diesel-powered site dumper is driven by a 25 HP twin-cylinder water-cooled engine and equipped with a heavy-duty oil-filled gearbox offering 4 forward and 1 reverse gear for smooth and controlled mobility. Its 4-wheel drive and hydraulic drum brakes allow safe operation over rough and uneven terrain.

Built on a rugged M.S. channel chassis with a skip height of 1.48 meters, the JK Tough Rider ensures quick and efficient loading and unloading of materials. With a tight turning radius of 4.5 meters and strong ground clearance, it is perfectly suited for residential, commercial, and infrastructure construction projects where durable and compact material transport equipment is essential.

FEATURES

  • The Toughest: COMPLETE STEEL BODY - NO FIBRE PARTS
  • Smart Counter Weight System
  • Special Towing Arrangement
  • Specially designed bucket mouth
  • Heavy Duty Discharge Bucket
  • Original & Non Assembled Engine
  • Low Maintenance and Minimal Fuel Consumption
  • Ergonomic Placement of Exhaust Pipe
  • Reverse Horn

Product Details

Product Details
Model No. JKTR
Type Electric Start with 12 Volt Exide Battery
Capacity 2 Ton
Engine Twin Cylinder, 25 HP Water Cooled Diesel Engine
Gearbox Heavy Duty Oil-Filled Gearbox (4 Forward + 1 Reverse)
Clutch Heavy Duty Friction Type Single Disc
Chassis Heavy Duty & Sturdy M.S. Channel
Brakes Heavy Duty Hydraulic Operated Drum Brakes
Tyres 700 x 15 – 4 Nos
Drive 4 Wheel
Wheelbase 2.2 meters
Turning Radius 4.5 meters
Skip Height 1.48 meters
Discharge Height 580 mm
Ground Clearance 180 mm
Dimensions (L x W x H) 3630 x 1740 x 2310 mm (4100 mm Length with Smart Counterweight)
Weight 1700 kg

OPTIONS

Spare Wheel / Stepney
180° Bucket Rotation
Self Loading Tough Rider

JK TOUGH RIDER MODEL
Wheel Barrow 1

JK TOUGH RIDER

Wheel Barrow 2

JK TOUGH RIDER

Wheel Barrow 3

JK TOUGH RIDER

Data, features and illustrations are not binding and may be altered without any notice.
